Working process of MG Full automatic dry mortar production line dry powder mixer machine:
The wet sand is dried by a three-pass dryer, and then conveyed to the classification sieve on the top of the tower through a plate chain bucket elevator. The classification accuracy of the sieve is as high as 85%, which facilitates fine production and stable efficient. The number of screen layers can be set according to different process requirements. In general, four types of products are obtained after the classification of dry sand, which are stored in four raw material tanks at the top of the tower. The cement, gypsum and other raw material tanks are distributed on the side of the main building, and the materials are conveyed by the screw conveyor.
The materials in each raw material tank are transferred to the measuring bin using variable frequency feeding and intelligent electrical technology. The measuring bin has high measurement accuracy, stable operation, and a cone-shaped bin body with no residue.
After the material is weighed, the pneumatic valve below the measuring bin opens and material enters the mixing main machine by self-flow. The configuration of the main machine is usually a dual-shaft gravity-free mixer and a coulter mixer. Short mixing time, high efficiency, energy saving, wear resistance and loss prevention. After the mixing is completed, the materials enter the buffer warehouse. A variety of models of automatic packaging machines are configured under the buffer warehouse. For high-volume production lines, the integrated design of automatic packaging, palletizing, and packaging production can be achieved, saving labor and reducing labor intensity. In addition, an efficient dust removal system is installed to create a good working environment and meet environmental protection requirements.
The entire production line adopts advanced computer synchronous production management and control system, which supports fault early warning, controls product quality, and saves labor costs.
Configuration of MG Full automatic dry mortar production line dry mortar mixer machine:
| No. | Name | Function |
| 1 | Raw material storage silo | Store the raw materials |
| 2 | Screw conveyor | Conveying raw material from silo to weighing hopper |
| 3 | Weighing hopper | Weighing the raw material from silo as formula requirement |
| 4 | Bucket elevator | Lift raw material from ground to silos and premix hopper |
| 5 | Premix hopper | Storage one batch raw material above mixer |
| 6 | Mixer | Mixing raw material uniformally |
| 7 | Finish prouduct bin | Storage one batch finish product for packing |
| 8 | Auto packing machine | Packing the product into bags |
| 9 | Dust collector | Collecting the dust when machine production |
| 10 | Steel platform | Two layers or three layers high strength platform for the machines |
| 11 | Air compressor | Providing pressing air to machines and air cylinders |
| 12 | PLC Control cabinet | Control the complete set machine start and stop automatically |

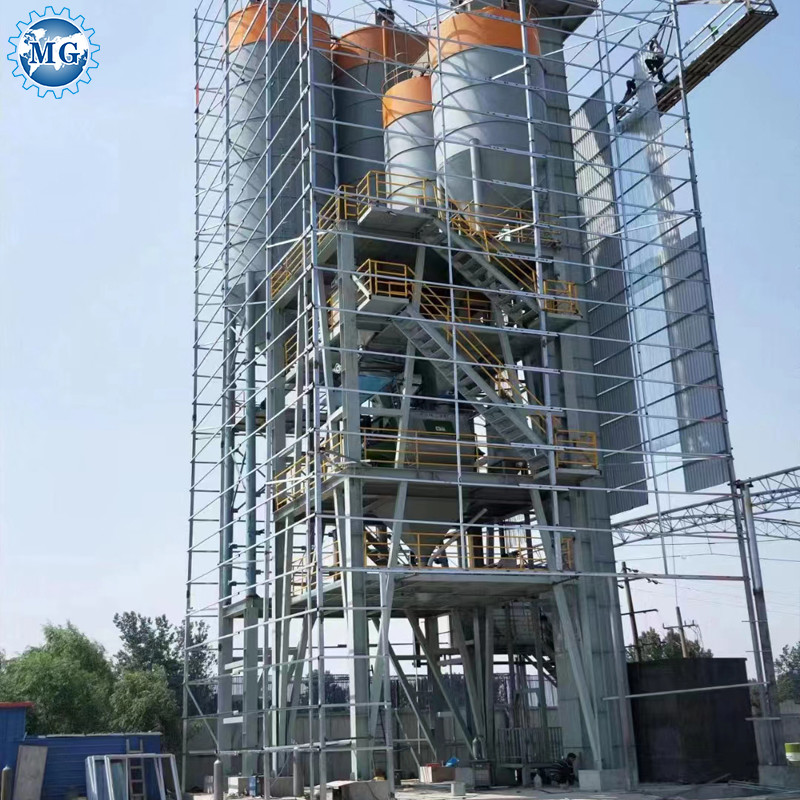

Working site of MG Full automatic dry mortar production line dry powder mixer machine:
3D drawing of MG Full automatic dry mortar production line dry mortar mixer machine:
Application of MG Full automatic dry mortar production line dry powder mixer machine:
Factory of Zhengzhou MG and the Full automatic dry mortar production line:
MG Full automatic dry mortar production line dry powder mixer machine loading to Saudi Arabia:
Other type Full automatic dry mortar production line dry powder mixer machine of our factory:
FAQ:
1, How about the investment of this project?
A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.
Low capacity low cost, we will provide you cost effective solutions as your requirement.
2, How many people required to operate this dry mortar plant?
A: Usually 2-4 workers are enogh to operate this dry mortar plant.
3, What equipment and service you can provide?
A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.
4, What is the area required for this dry mortar plant?
A: According to the capacity of the dry mortar plant, the area required 300-1000 m2.
5, What is the total power consumption (KW) of this dry mortar plant?
A: It is 60-150KW based on the capacity of the dry mortar plant.
6, What is the capacity of your dry mortar plant?
A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry mortar plant as your capacity requirement.
7, How long is the guarantee period?
A: 12 months, within this period, we provide you spare parts and services for free.
8, Can you install the dry mortar plant in my country?
A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.
