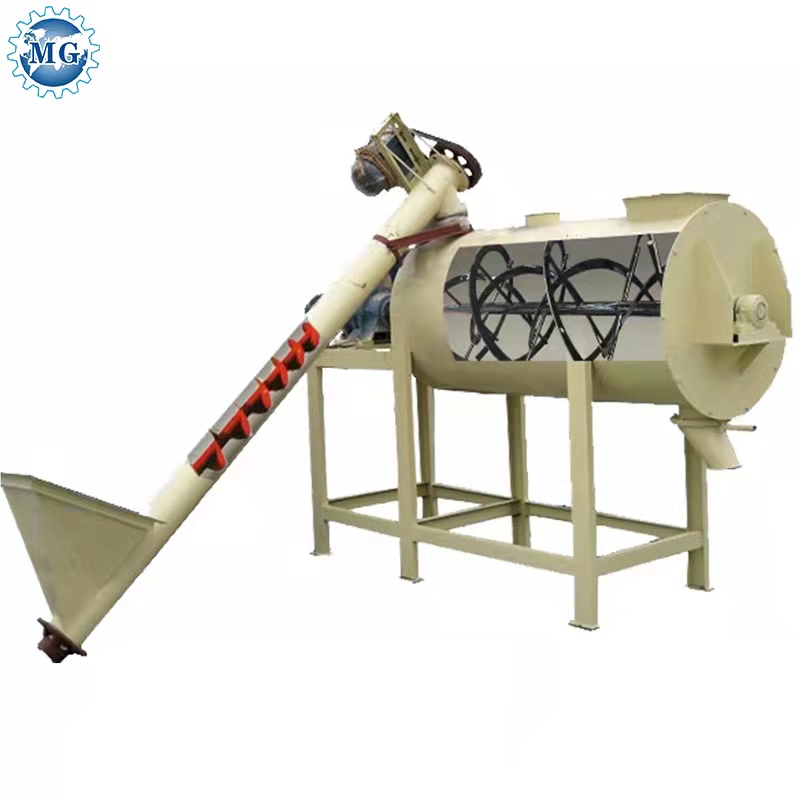

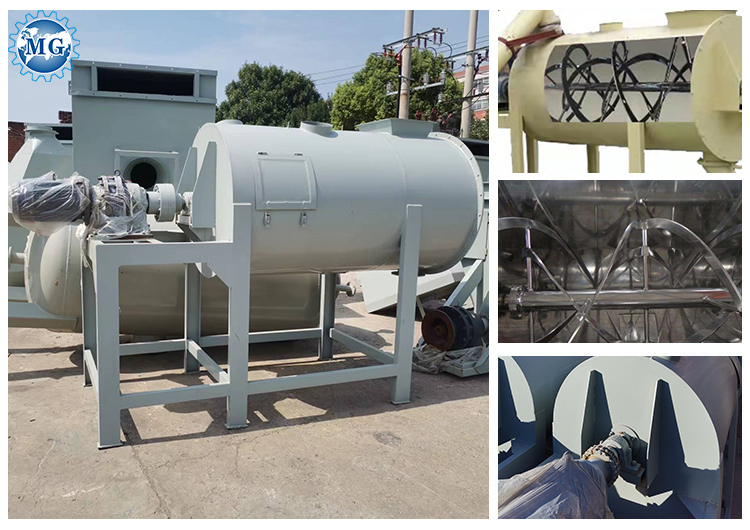

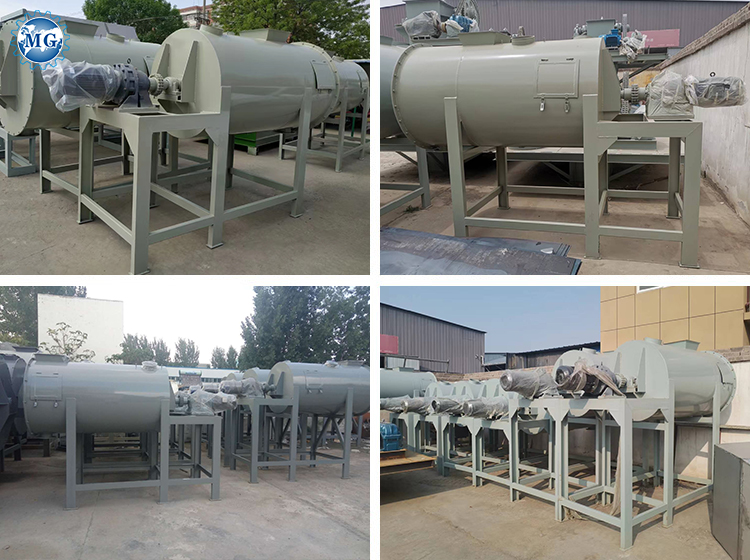

1. Description of CE Certificated Ribbon Mixer Blender.
Zhengzhou MG dry mortar ribbon mixer is developed based on the U-type horizontal spiral ribbon mixer which has been distributed to a lot of cities by us, after times of improvement. Since it is designed with three -layer successive spiral ribbons, it may have three layers of material flows; therefore, during the convention process, the materials maybe mixed rapidly and evenly in such a manner of penetrating through each other and accomplishing displacement.
2. Advantages of CE Certificated Ribbon Mixer Blender.
Characteristics of the dry mortar mixer ribbon mixer:
1. MGDM-1.0 skim coat spiral mixer is widely applied as it can mix the solid and solid (powder and granule) materials, solid and liquid materials(powder and liquid), liquid and liquid materials. For mixing dry mortar, it mainly mix cement, sand, flyash, additives etc.
2. it has high degree of uniformity and may well mix the materials in a proportion of 1:1000, so such machine will be better when mixing materials with a great disparity in specific gravity.
3. it can be installed conveniently, discharge quickly, operate easily and occupy little area, and also it have multi-functions by apply the design of lower opening according to the requirements of users.
4. It can mix material gently and will not damage the initial state of the materials.
5. This equipment run stably and reliably and has fewer wearing parts, so it processes long service life and requires convenient maintenance and simple operation.
6. Sealing system has good tightness, ensuring no products leakage.
7. Durable structure, stable performance, long service time and less spare parts.
8. Material of the mixer: Carbon steel, and aslo we can make it stainless steel as requirement. This skim coat spiral mixer can also equip with automatic packing machine according to customer's requirements. And we can also supply big capacity dry mortar production line with capacity from 3-30T/H.
3. Product Configuration of CE Certificated Ribbon Mixer Blender.
| Model | Power | Volume of Drum | Capacity | Size | Diameter of Drum |
| MG500 | 5 KW | 0.8 m3 | 0.5 T/Batch | 2850x800x1950mm | Φ800mm |
| MG1000 | 7.5 KW | 1.6 m3 | 1 T/Batch | 3300x1050x2100mm | Φ1050mm |
| MG2000 | 11 KW | 2.8 m3 | 2 T/Batch | 3750x1280x2300mm | Φ1280mm |
| MG3000 | 15 KW | 3.7 m3 | 3 T/Batch | 4050x1380x2500mm | Φ1380mm |
4. Working Principle of CE Certificated Ribbon Mixer Blender.

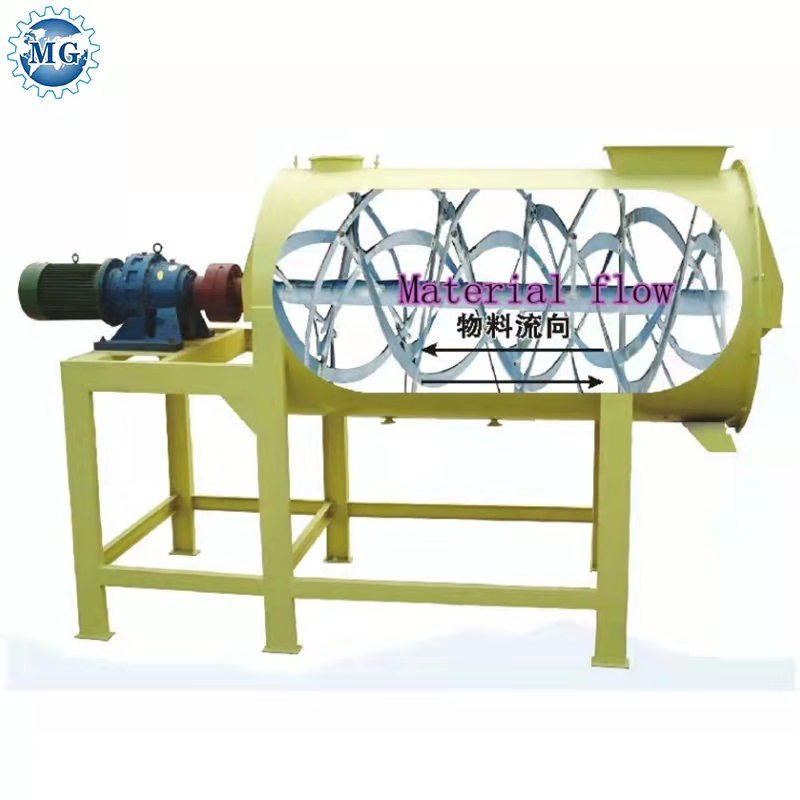

When the ribbon mixer works, the outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. In the same time, some material driven by screw ribbon do the radial motion, to form the convective mixing, so to achieve uniform mixing effect in relatively short time.
5. Raw Materials of CE Certificated Ribbon Mixer Blender.
1. Cementing materials: cement, lime, gypsum.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite, etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder, etc.
4. Water-retention and thickening material.
5. Chemical additives.
6. Application of CE Certificated Ribbon Mixer Blender.
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar, tile joint mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, skim coat mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
7.Our company.
Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.
The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer powder blending machine,impulse dust collector,automatic packing machine,and so on.
MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 50 countries,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates,Argentina,Chile,Ecuador,Morocco,South Africa,Nigeria,etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products.
8. FAQ
1. What kind of dry mortar can this production line make?
A: Our simple dry mortar production line can make all kinds of dry mortar,such as inner and outer wall putty,plaster,skim coat,ceramic tile adhesive,masonry mortar,and so on.
2. Can you provide formula of different kind of dry mortar?
A: Yes,we can,we have been professional dry mortar production equipment supplier for more than 20 years,we have many customers all over the world,and we are very experienced in dry mortar production field,we are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association,we can provide all kinds of best formula for our customers.
3. What is your business model? Trading company or factory?

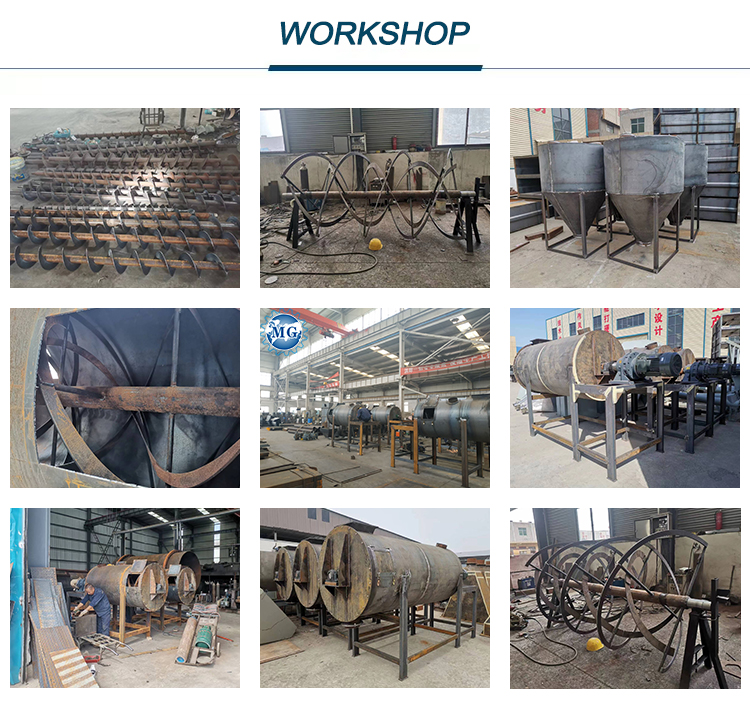

A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
4. How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we can assemble and test all the equipment and pack them carefully before delivery. We have export to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.
5. How many workers are needed to operate the equipment?
A: Our 3-4 t/h simpler dry mortar production line and 4-6 t/h improved dry mortar production line need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar production line and 10-12 t/h automatic dry mortar production line need 3-4 worker.
6. What is the guarantee of the equipment?
A: 12 months, with in this period we provide you technical services for free.
7. Can I visit your factory?
A: Yes! Welcome to visit our factory, many domestic and international customers visit our factory every year. We can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
