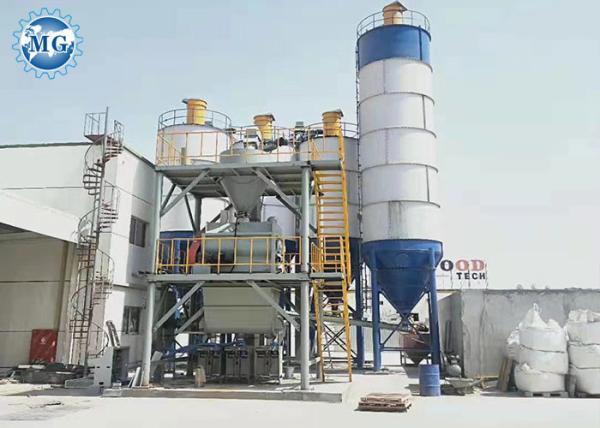

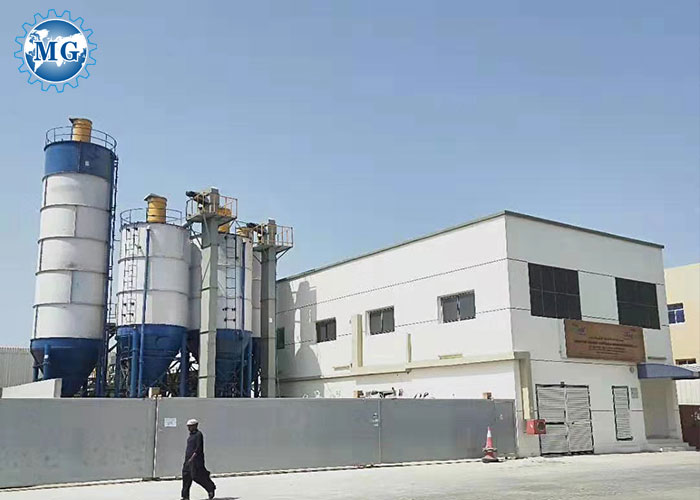

10-12 Ton Per Hour Energy Saving Automatic Tile Adhesive Machine Dry Mortar Plant
Production Description of Full Auto Dry Mix Mortar Mixing Production:
MG Automatic dry mortar plant on the basis of semi-auto dry mortar plant, increases the raw material storage system, automatic weighing system and premix tank, that no need manual weighing, and improves the efficiency.
Depending on the configuration, capacity at 10-12T/H, with an annual output of 30-100,000 tons per year.
Occupation area: 60-100m² , Height: 8-13 m, Worker required: 3-5 person.
Technical parameters of Adhesive Mortar Making Machine:
| No. | Name | Model |
| 1 | Raw Material Storage System | 60 T Detachable Silo |
| 2 | Conveying System | I | Screw Conveyor |
| II | Indoor Bucket Elevator |
| III | Outdoor Bucket Elevator |
| 3 | Batching & Weighing System | Batching & Weighing Hopper |
| 4 | Mixing System | I | Double Shaft Paddle Mixer |
| II | Premix Hopper |
| III | End Product Hopper |
| 5 | Packing System | Automatic Valve Port Packing machine |
| 6 | Control System | PLC Control Cabinet |
| 7 | Dedust Part | Pulse Dedust Filter |
| 8 | High Pressure Air Supply | Air Compressor |
| 9 | Steel Structure | 2-Layer Steel Platform |
| 10 | Bag Belt Conveyor(Optional) | Roller type belt conveyor |
Features of Adhesive Mortar Making Machine :
1. It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.
2. The dry mortar production line uses a centralized control system, making the equipment easy to operate.
3. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 150~200m2.
4. We can provide one-stop service from design to installation according to our customers' specific requirement.
Application of MG Automatic Tile Adhesive Machine:
Dry Mortar Mixing Equipment can produce the following dry mortars:
| Bonding mortar | Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc |
| Decoration mortar | Decorative plaster, inner and outer wall putty, colorful decoration mortar etc |
| Protection mortar | Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc. |
Customer visiting in our factory
Further details please contact freely, your satisfaction is the greatest supports for us !!!
