2021 New Type CE Certificate Full
Automatic Dry Mortar Production Machine Hot Sale
1. Decription of dry mortar machine and dry mortar using:
In the construction industry, mortar is a general term related to mixture of cement and sand in different proportions along with water. Mortar is used for masonry construction, flooring, plastering, and finishing, which will be in a wet state for application. In contrast to site mixed mortar, dry mix mortar is a term for readily mixed raw materials in dry form which may also have additives and polymers added for specific usage in construction.
2, Configuration of MG automatic dry mortar production machine:
Raw material silos : cement,sand, caco3a and some additives
Feeding screw: the speed can by controled by frequency converter
Quantity dosing system: auto-dosing all raw material accurately
Mixing system: double-shaft paddle mixer ,plough mixer ,riboon mixer or others
Packaging machine: valve-bag packing machine,open-mouth bag packing mahcine and others
Dust collecting system: installed at the position of feeding port, packing port
Automation cotrol system: PLC+TOUCH SCREEN
3, MG Full Automatic Dry Mortar Production Machine Technical Parameter
Technical parameter of MG full automatic dry mortar production machine:
| Model | Name | Capacity | Machine height | Workshop area |
| MG-3.0 | Simple dry mortar production line | 3T/H | 3.5m | 400-500 m2 |
| MG-3.1 | Improved simple dry mortar production line | 4-5T/H | 3.5m | 400-500 m2 |
| MG-3.2 | Semi-automatic dry mortar production line | 6-8T/H | 6m | 600-800 m2 |
| MG-3.7 | Full automatic dry mortar production line | 10-12T/H | 8m | 800-1000m2 |

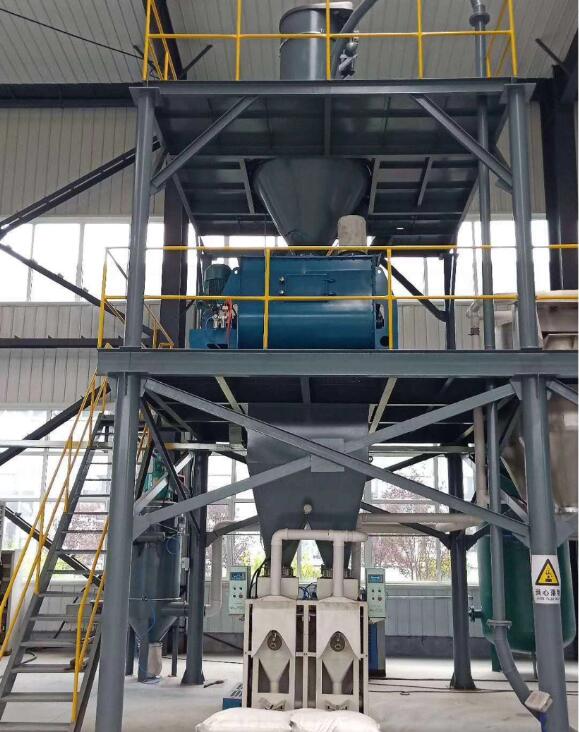

4. MG full automatic dry mortar production machine working site:
5. 3D drawing of MG full automatic dry mortar production machine:

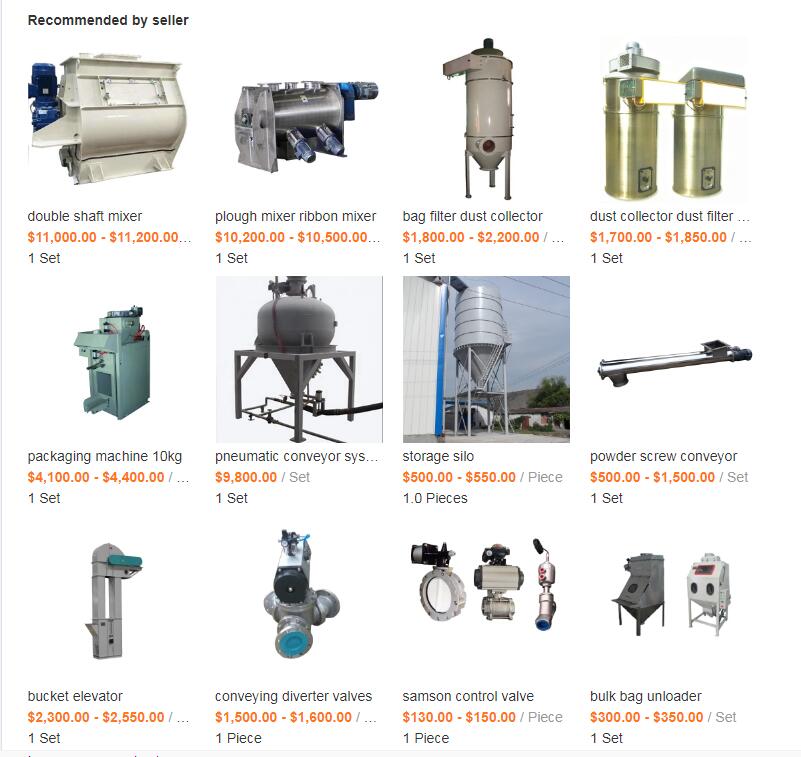

6. Related products we sell:
7. Full automatic dry mortar production machine installed in foreign countries:
8. About Us:
9. Packing & Shipment
10. FAQ:
1, How about the investment of this project?
A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.
Low capacity low cost, we will provide you cost effective solutions as your requirement.
2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?
A: (1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.
(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.
(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.
3, How many people required to operate this dry mortar plant?
A: Usually 2-4 workers are enogh to operate this dry mortar plant.
4, What equipment and service you can provide?
A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.
5, What is the area required for this dry mortar plant?
A: According to the capacity of the dry mortar plant, the area required 300-100 m2.
6, What is the total power consumption (KW) of this dry mortar plant?
A: It is 20-80W based on the capacity of the dry mortar plant.
7, What is the capacity of your dry mortar plant?
A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry mortar plant as your capacity requirement.
8, How long is the guarantee period?
A: 12 months, within this period, we provide you spare parts and services for free.
9, Can you install the dry mortar plant in my country?
A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.
If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
