220 - 440V Highly Efficiency Automatic Dry Mortar Mixing Plant Customized Voltage

Zhengzhou MG Industrial Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

220 - 440V Highly Efficiency Automatic Dry Mortar Mixing Plant Customized Voltage

  • 1
  • 2

Brand Name : MG

Model Number : MGDM3.7

Certification : CE,SGS,FERI,BV,C/O

Place of Origin : China

MOQ : 1Set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10set within 30days

Delivery Time : 15days

Packaging Details : Standard packing

Product Name : Dry Mortar Mixing Production Line

Application : Dry Mortar,tile adhesive Mxing Production Line

Advantage : Professional Manufacturer

Dimension(l*w*h) : 8000*8000*10000

Capacity : 10-15 T/H,15-20 t/h

Weight : 10-20T

Color : Customer's Request

Batching and weighting : Full Automatic System

Warranty : 12 months

Raw material : Additives,Cement,Flyash,Sand,Sand Cement Glue Mortar

Contact Now

220 - 440V Customized Voltage Highly Efficiency Automatic Dry Mortar Mixing Plant

Product Description

MG Automatic Dry Mortar Production Line adopts European advanced design concept and latest automatic control management system. Tower layout has been applied in the overall design and man-friendly operation with automation level has been largely improved. The capacity can reach 30,000-100,000 tons per year according to different configuration.

Application:

Dry mix mortars are used in many different applications in the construction of a building. Some of these applications are universal and some others are specific to certain regions or countries. Dry Mortar Mixing Equipment can produce the following dry mortars:

Bonding mortar Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc
Decoration mortar Decorative plaster, inner and outer wall putty, colorful decoration mortar etc
Protection mortar Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew proof mortar, shielding mortar etc.

Equipment Specification:

Model Simple dry mortar plant Improved simple dry mortar plant

Semi-automatic

dry mortar plant

Full-automatic

dry mortar plant

Out put 1-3t/h 4-5t/h 5-8t/h 10-30t/h
Machine area 20m² 20m² 50-60m² 60-100m²
Total power 5.5-7.5kw 6-11kw 24-28kw 60-120kw

Mixer volume

3300*1050*2100mm 2m³ 2m³ 2m³, 3m³, 4m³
Machine height 3-4m 3-4m 6-8m 8-13m
Man power 2-3person 2-3person 3-4person 3-4person
Equipment parts

screw conveyor,

ribbon mixer,

transit hopper,

valve packer,

air compressor, control panel

screw conveyor, twin shaft mixer, storage tank, valve packer, air compressor

control cabinet

bucket elevator,

twin shaft mixer,

holding tank, valve packer, control cabinet, air compressor

silos, screw conveyor, auto-weighing system, bucket elevator, premix tank, twin shaft mixer, holding tank, valve packer, PLC control cabinet, air compressor
Batching and packaging Manual batching & Automatic packaging Automatic

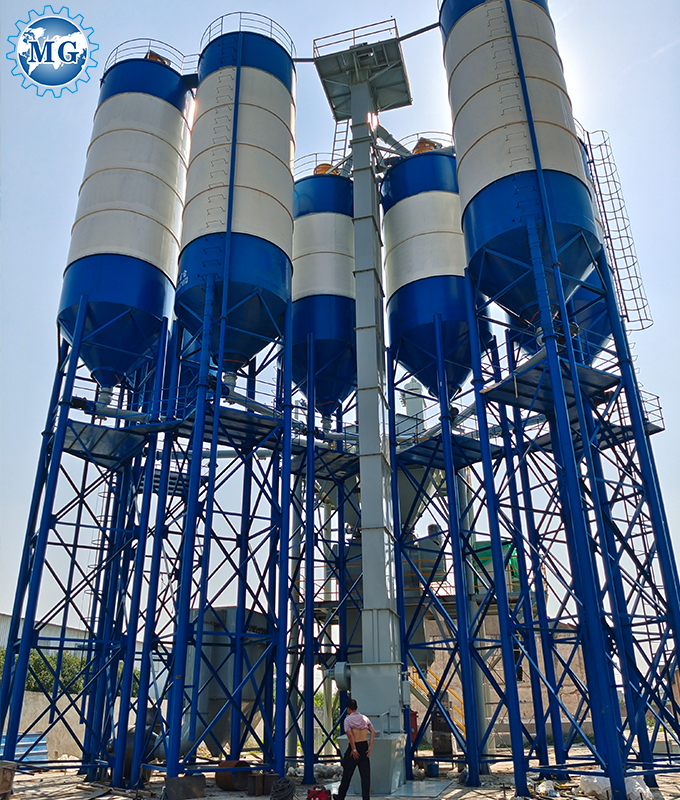

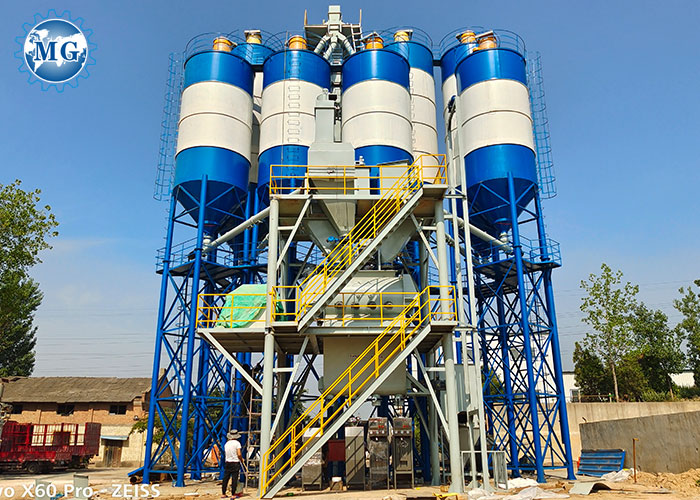

Successful Case in Xianyang City, Shaanxi Province, China.

220 - 440V Highly Efficiency Automatic Dry Mortar Mixing Plant Customized Voltage

220 - 440V Highly Efficiency Automatic Dry Mortar Mixing Plant Customized Voltage
