Tile Adhesive Dry Mortar Mixing Equipment With Packing Mahcine
1. Description of MG automatic dry mortar mixing equipment:
Dry mortar is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives. The demand for dry mortar has increased rapidly due to its outstanding merit compare to the mortar production in job-site.
The tower type dry-mix mortar equipment is arranged from top to bottom according to the production process, the production processis smooth, the product variety is large, and the cross-contamination of raw materials is small. It is suitable for the production of ordinary mortar and various special mortars. In addition, the entire production line covers a small area, has a outward appearance, and has relatively low energy consumption. However, compared to other process structures, the initial investment is relatively large.
2. Advantage of MG automatic dry mortar mixing equipment:
1. It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.
2. The dry mortar production line uses a centralized control system, making the equipment easy to operate.
3. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 150~200m2.
4. We can provide one-stop service from design to installation according to our customers' specific requirement.

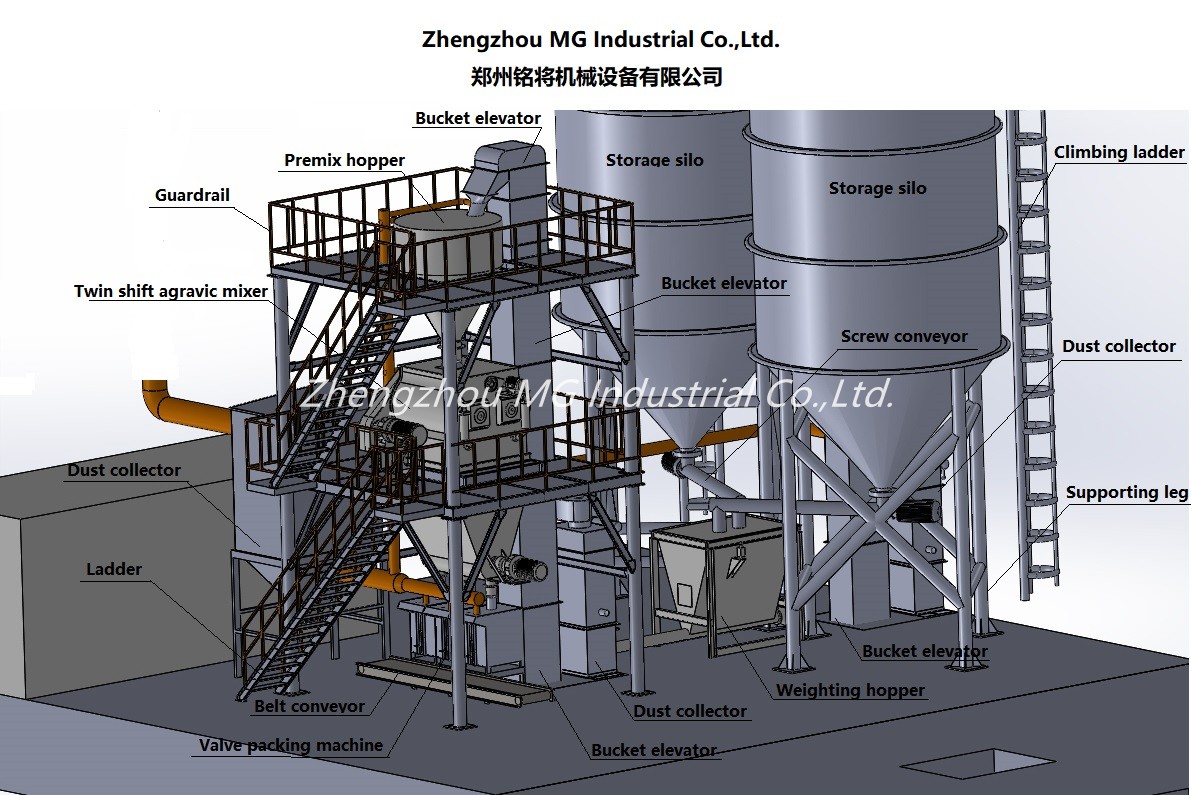

3, 3D drawing of MG full automatic dry mortar mixing plant:

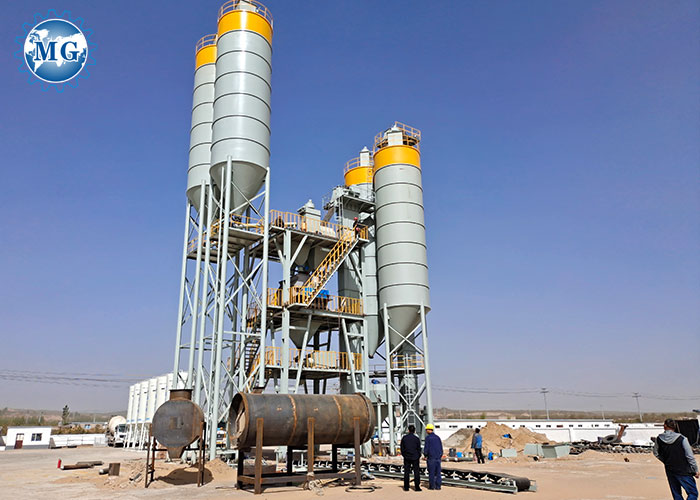

4, Customer Visiting of MG automatic dry mortar plant:

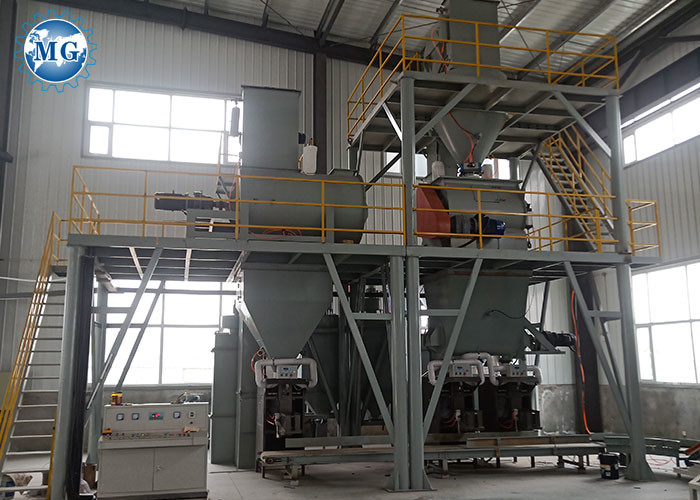

5. MG full automatic dry mortar mixing equipment working site:
6. Thchnical parameter of MG automatic dry mortar mixing equipment:
| Model | 2000L Mixer | 3000/4000L Mixer | 6000L Mixer Plant | 10000L Mixer plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop required | 500-600m2 | 600-800m2 | 800-1000m2 | 1000-1500m2 |
| Bag belt conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet wrapping machine | Provide | Provide | Provide | Provide |
| Sand dryer | As requirement | As requirement | As requirement | As requirement |
7. Application of MG automatic dry mortar mixing equipment:
Dry mix mortars are used in many different applications in the construction of a building. Some of these applications are universal and some others are specific to certain regions or countries. Dry Mortar Mixing Equipment can produce the following dry mortars:
| Bonding mortar | Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc |
| Decoration mortar | Decorative plaster, inner and outer wall putty, colorful decoration mortar etc |
| Protection mortar | Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew proof mortar, shielding mortar etc. |
We are professional manufacturer of dry mortar plant and sand dryer plant over 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.
Welcome your inquiry and visiting!
