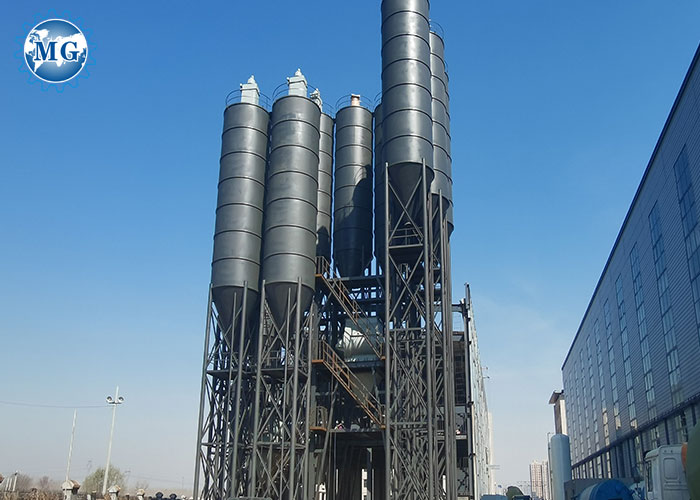

Automatic 25T/H Dry Mix Mortar Production Line Tile Adhesive Powder Making Manufacture
1. Description Of MG Automatic Dry Mix Mortar Production Line:
According to customer requirements, we can design personalized production processes. The equipment of this production line includes: Dry sand production part, Material storage part, Material measuring system and additive measuring system, Mixing equipment and Packaging equipment.
MG tower-type dry mortar plant building material machinery is arranged from top to bottom according to the production process, and the production is relatively smooth. It is suitable for the production of ordinary mortar and various special mortar, with many kinds of products and small cross pollution of raw materials. It has small floor area, atmospheric appearance, relatively low energy consumption, and relatively large initial investment compared with other process structures.
2. Configuration Of MG Full Automatic Dry Mix Mortar Production Line

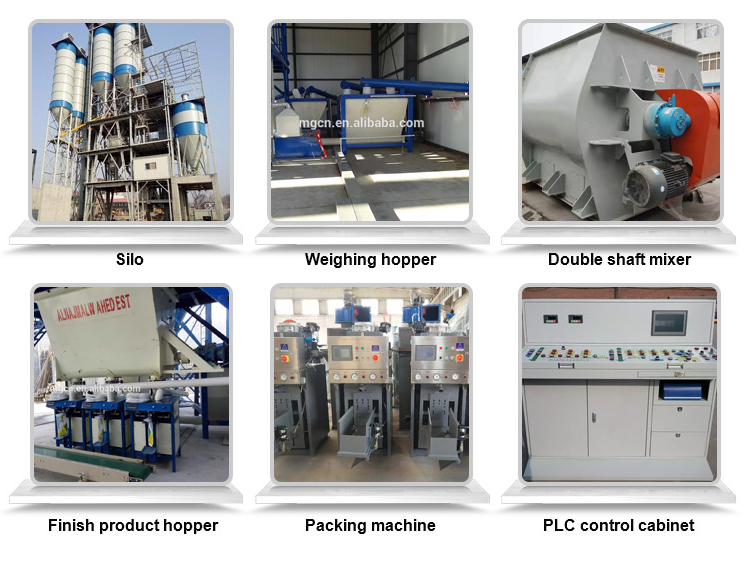

Electric control cabinet; Cement silo, Weighing system; Feeding hopper; Impulse dust collector; Bucket elevator; Premix tank; Twin shaft agravic mixer; Finished product holding tank; Automatic packaging machine; Air compresser.
It can be equipped with grinding machine and drying machine according to requirement.
3. Parameter of MG Full Automatic Dry Mix Mortar Production Line:
| Model | 2000L Mixing plant | 3000/4000L Mixing plant | 6000L Mixing Plant | 10000L Mixing Plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine Height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total Power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker Required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop Required | 500-600㎡ | 600-800㎡ | 800-1000㎡ | 1000-1500㎡ |
| Bag belt Conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet Wrapping Machine | Provide | Provide | Provide | Provide |
| Sand Dryer | Provide As Requirement | Provide As Requirement | Provide As Requirement | Provide As Requirement |
| HS Code | 8474390000 | 8474390000 | 8474390000 | 8474390000 |
4. Advantage of MG Automatic Dry Mix Mortar Production Line:
(1)There are several materials discharging modes for selecting, which include the manual mode, electrical mode and pneumatic mode.
(2)The fiber can be rapidly separated by the high speed rotating blades.
(3)The air-phase balancing device is installed to mix the materials more even.
(4)The compound structure of paddles can largely reduce the cost of maintenance.
(5)The materials are discharged through the big gate, which can reduce the blind areas inside the mixer, make the discharging procedure cleaner and faster.
(6)It can mix the solid-solid (powder and power) and solid-liquid (powder and liquid), and also take drying operation.
(7)The speed of mixing is fast, it only takes about 2-3 minutes to mix the ordinary powders.
(8)The machine can be operated in confined space, which is running reliably and convenient in maintenance.
5. Application of MG Automatic Dry Mix Mortar Production Line:
The dry mortar production line can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

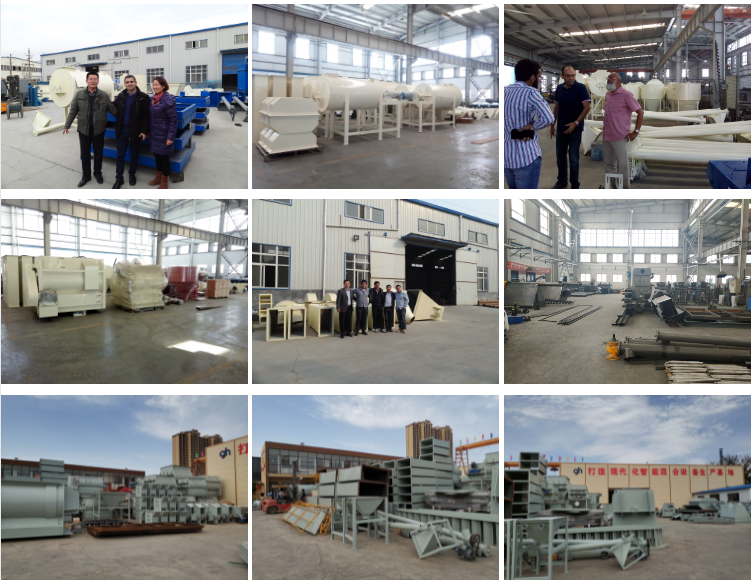

6. Factory and Workshop

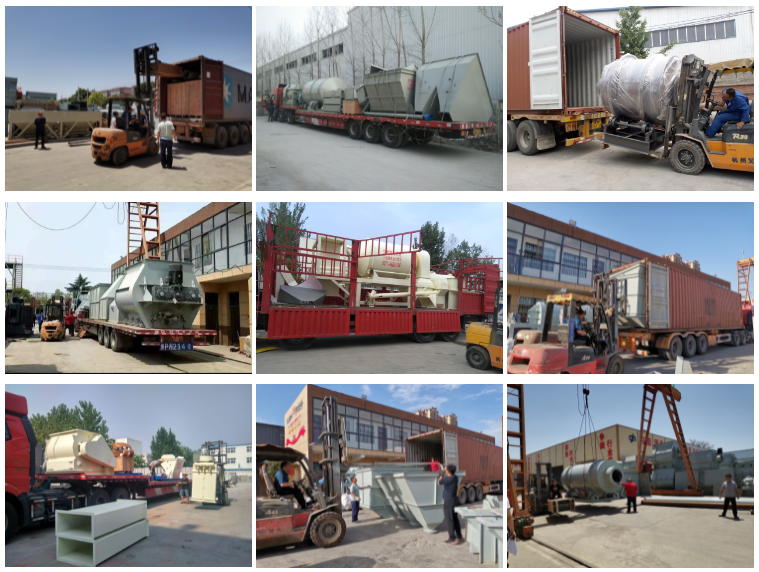

7. Packing and Delivery
8. Certificates
9. Our Company
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mix mortar production line!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
10. Why Choose Us
