10-30 T/H Dry Mortar Tile Adhesive Mixing Machine
1. Description Of MG Automatic Dry Mortar Tile Adhesive Mixing Machine:

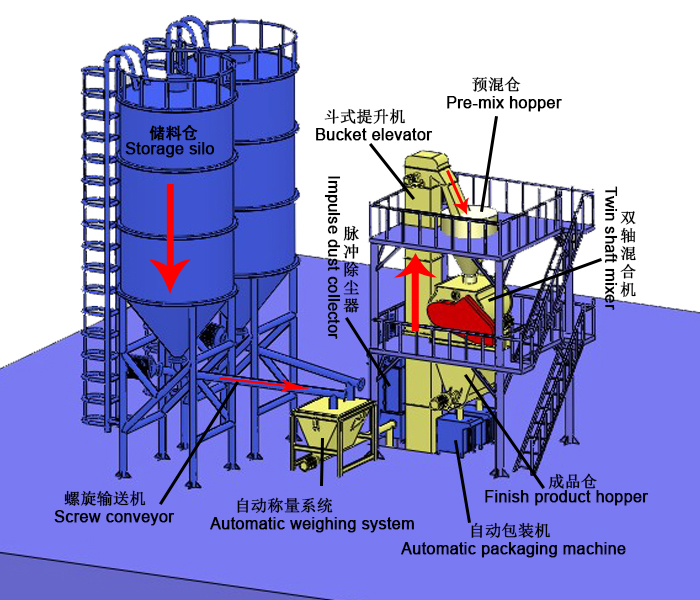

The main components of this production line: raw material storing system, automatic weighing system, conveying system, mixing system, pneumatic system, packing system and dedusting system. the main control system administrate the production order based on fixed formula ratio, thus the production line will dosing the coarse materials from storage silos, after automatic weighing, the material will enter in premix tank and high efficient agravic mixer continuously, to mix in a short period(3-5min).The well mixed material will discharge into the holding tank, which will make secondary mixing, then down to new designed automatic filling and packing machine, the packing machine work efficiently based on fixed time and volume, it increase the capacity sharply, well packed finished mortar will be transferred to finished mortar area, ready for sale.
2. Configuration Of MG Full Automatic Dry Mortar Tile Adhesive Mixing Machine
- 1. Aggregates storage bins, powder materials silos.
- 2. Screw conveyors, weighing scales
- 3. Bucket elevators
- 4. Full automatic batching system
- 5. Pre-mixing bin
- 6. Mixer(Installed with triaxial mixing vanes)
- 7. Finished products storage bins
- 8. Packaging system (Open gate/valve-gate type packing machine)
- 9. Dust removal system(impulse type)
- 10. Control system to inspect the level of powder materials
- 11. Steel frame, platform, ladder stand, barrier
- 12. Main control system
- 13. Air compressor system: The central air compressor
- 14. The gas phase equilibrium system
- 15. Bulk materials storage system: finished mixture tanks, bulk machine.
- 16. Drying system
- 17. Alarm system
3. Parameter of MG Full Automatic Dry Mortar Tile Adhesive Mixing Machine:
| Model | 2000L Mixing plant | 3000/4000L Mixing plant | 6000L Mixing Plant | 10000L Mixing Plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine Height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total Power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker Required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop Required | 500-600㎡ | 600-800㎡ | 800-1000㎡ | 1000-1500㎡ |
| Bag belt Conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet Wrapping Machine | Provide | Provide | Provide | Provide |
| Sand Dryer | Provide As Requirement | Provide As Requirement | Provide As Requirement | Provide As Requirement |
| HS Code | 8474390000 | 8474390000 | 8474390000 | 8474390000 |
4. Advantage of MG Automatic Dry Mortar Tile Adhesive Mixing Machine:
1, A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching, automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2, The ingredients are accurate, can automatically calculate the error and automatically correct.
3, The use of tower layout structure, shorten the transmission distance and increase production efficiency.
4. The use of a biaxial non-gravity mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
5, The control system man-machine dialogue is simple and easy to operate.
With strong environmental protection, colleagues who reduce the labor intensity of their staff effectively improve the work environment in the working area.
5. Application of MG Automatic Dry Mix Mortar Producton Line:
The dry mortar production line can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
6. Factory and Workshop
7. Successful Projects
8. Our Company
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mortar production line!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
9.Our Service
Pre-Sales Service
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours.
* According to the customers' requirements and circumstance to make the best design.
* Cost/benefit analysis.
* To support factory layout.
After-Sales Service
* We are in charge of installing, debugging and training.
* Technical guidance of frequently asked questions.
* One year guarantee for whole machine except of quick-wear part.
* 24 hours technical support by email/phone.
