Customized Voltage Tower type Automatic Tile Adhesive Manufacturing Plant Building Material Making Machinery
Description of the Automatic Tile Adhesive Manufacturing Plant :
Zhengzhou MG series Automatic Tile Adhesive Manufacturing Plant is based on the latest design concept in Europe, this production adopts the advanced computer auto-control system, whose production capacity can reach 30-100 thousand tons per year depend on the system configuration. The production line consists of storage system, metering and batching system, conveying system, mixing system, air compressor system , packaging system, and dedusting system, etc.
Working principle of the Tile Adhesive Manufacturing Plant :
According to requirements of the customers, the system can be equipped with 3-6 bulk storage bins, the material will, after being processed by the metering and batching system, be conveyed to pending-for-mixing bin, then fed into the biaxial agravic mixer for continuous mixing. The finished product in high conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed. Moreover, with automatic rationing and packaging machine at the bottom of finished products bin, allowing for synchronous auto-packaging operation.
Technical parameter of Automatic Tile Adhesive Manufacturing Plant:
| Model | Out put | Occupied area | Equipment height | Manpower | Batching and packaging |
| Simple type | 3-4t/h | 20m2 | 3-4m | 2-3 Person | Manual batching Automatic packaging |
| Semi-automatic type | 6-8t/h | 50-60m2 | 6-8m | 3-4 Person | Manual batching Automatic packaging |
| Full automatic type | 8-30t/h | 60-100m2 | 8-13m | 3-4 Person | Automatic batching Automatic packaging |
Features of the Tile Adhesive Manufacturing Plant
1. It features at magnificent appearance, good quality, high output and accurate mortar proportioning.
2. Easy and convenient operation, high efficiency, it can both obviously reduce labor intensity and effectively reduce dust pollution.
We can provide one-stop service from design to installation according to our customers' specific requirement.

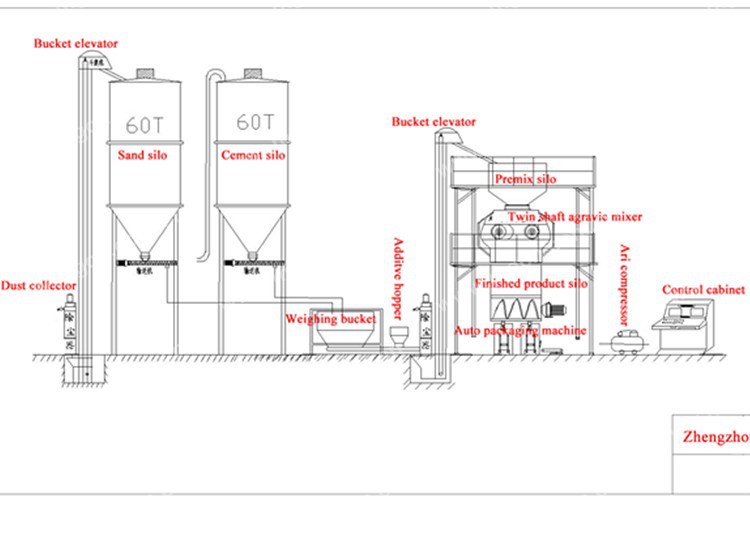

Working principle chart of Tile Adhesive Manufacturing Plant
Application of High efficienct Tile Adhesive Manufacturing Plant
It can make the following mortars :
1.wall putty 2.tile or floor adhesive mortar 3.masonry mortar 4.self-leveling morrtar 5.tile or floor grout mortar 6.base-mortar 7.anti-crack mortar 8.water-proof mortar, etc.

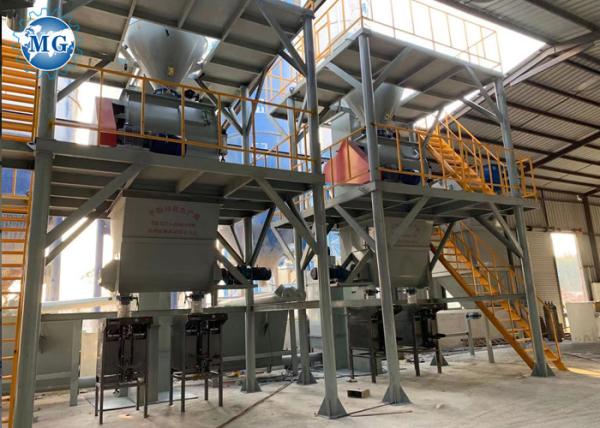

Detailed Images of the main parts
Company profiles:
Machine manufacturing equipments:
Our Certificates:
Why choose us:
Custome visiting:
The tile adhesive production line loading to foreign countries:
The Successful projects of Zhengzhou MG Industrial Co.,Ltd
Please contact us freely for more information!
