SGS Certificate 2t/H Dry Mortar Production Line Insulation Mortar Production Line

Brand Name : MG

Model Number : MGDM3.1

Certification : CE,SGS,FERI,BV,C/O

Place of Origin : China

MOQ : 1Set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10set within 30days

Delivery Time : 15days

Packaging Details : Nude

Warranty : 1 Year

Voltage : 220-440v

Weight : 6t

After-sales service provided : Engineers avaiable to service mahinery overseas

Color : Customer's Request

Batching and weighting : Automatic System

Power : 45-100kw

Contact Now

SGS Certificate 2t/h Dry Mixed Putty Mortar Thermal Insulation Production Line

1. Product Description

MG Simple dry mortar plant is developed on the Ribbon mixer, after add the finish product hopper, the discharge screw conveyor, the automatic packaging machine, it is one set simple dry mortar plant. Now it mainly consists of Screw conveyor, Spiral ribbon mixer, storage silo, automatic weighing and packaging machine, the structure is very simple and it is very easy operation and maintenance, the capacity of this simple dry mortar production line is 3T/H.

2. Product Specification

NO.	Name	Specification	Quantity
1	Screw hoist	Φ219mm Length:3.7m	1
	Motor	4KW	1
2	Multi-ribbon Mixer	Mode 2000	1
	Material	A3	1
	Shaft Head	45# Steel	1
	Main Shaft	108mm*10mm	1
	Cylinder	3mm	1
	Wall Board	Thickness: 6mm
	Motor	15KW	1
	Reducer	XWD8-59	1
	Ribbon	3 Floors(6mm,6mm,3mm)
3	Multi-ribbon Mixer	Length:3.7m Φ219mm	1
	Motor	4KW	1
4	Finish Hopper		1
	Pre-mix Hopper	3m³	1
	Outlet	Φ300	2
5	Valve Packing Machine	3KW	2
	Cylinder		6
	Monitor		2
4	Electric Box		1

If the capacity you requested is different,you can choose our Station type dry mortar plant as below.


Model	Simple d ry mortar plant	Improved Simple dry mortar plant	Semi automatic dry morta r plant	Full automatic dry mortar plant
Out put	1-3t/h	4-5t/h	5-8t/h	10-30t/h
Components	screw conveyor, horizontal ribbon mixer, storage tank, packing machine, control cabinet, air compressor	screw conveyor, twin shaft mixer, storage tank, packing machine, control cabinet, air compressor	bucket elevator, twin shaft mixer, holding tank, packing machine, control cabinet, air compressor	cement silo, screw conveyor, automatic weighing system, bucket elevator, premix tank, twin shaft mixer, holding tank, packing machine, automatic control cabinet, air compressor
Occupied area	20m²	20m²	50-60m²	60-100m²
Total power	5.5-7.5kw	6-11kw	24-28kw	60-120kw
Mixer volume	330010502100(mm)	2m³	2m³	2m³, 3m³, 4m³
Equipment height	3-4m	3-4m	6-8m	8-13m
Man power	2-3person	2-3person	3-4person	3-4person
Batching and packaging	Manual batching & Automatic packaging	Manual batching & Automatic packaging	Manual batching & Automatic packaging	Automatic batching & Automatic packaging

3.Product Delivery

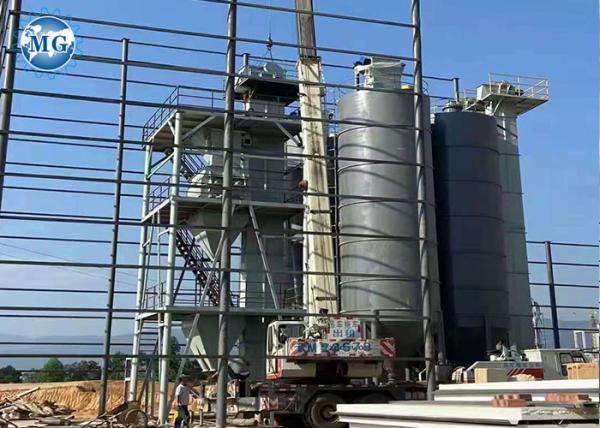

4. Project Case

SGS Certificate 2t/H Dry Mortar Production Line Insulation Mortar Production Line
