Ceramic Tile Adhesive Mortar Manufacturing Machine Dry Mortar Mix Machine

Brand Name : MG

Model Number : MG-3.7

Certification : CE, ISO, SGS,BV

Place of Origin : China

MOQ : 1 set

Price : USD39000-USD68000/Set

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 30 sets per month

Delivery Time : 20-25 working days from paid advace payment

Packaging Details : Standard seaworthy packing-Wooden box packing and bubble wrap packing

Product name : Dry mortar mixing equipment

Application : Dry mortar production

Customer logo : Can print on to the machine as requirement

Workers required : 3-4 workers

Color : Customer's Request

Machine Color : Can be print as customer requirement

Silo volume : as customer's choice

Small type dry mortar plant : 1-5T/H

Packing machine : Packing machine

Mixer Type : Mixer Type

Contact Now

Ceramic Tile Adhesive Mortar Manufacturing Machine Dry Mortar Mix Machine

Product Description

Descriptions of MG Construction Material Tile Adhesive Mortar Manufacturing Machine:

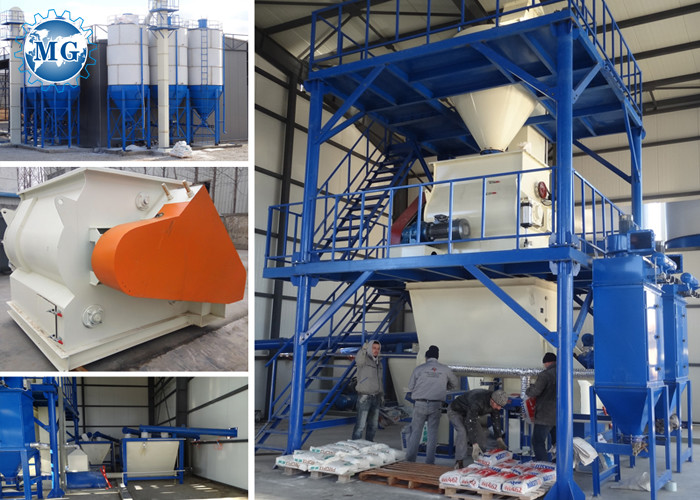

MG series Tile Adhesive Mortar Manufacturing Machine is based on the latest design concept in Europe, this production adopts the advanced computer auto-control system, whose production capacity can reach 30-100 thousand tons per year depend on the system configuration. The production line consists of storage system, metering and batching system, conveying system, mixing system, air compressor system , packaging system, and dedusting system, etc.

Mixer for continuous mixing. The finished product in conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed. Moreover, there is design with automatic rationing and packaging machine at the bottom of finished products bin, allowing for synchronous auto-packaging operation. Featured with easy and convenient operation, high efficiency, it can both obviously reduce labor intensity and effectively reduce dust pollution.

Features of MG Tile Adhesive Mortar Manufacturing Machine:

It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.
The Tile Adhesive Mortar Manufacturing Machine line uses a centralized control system, making the equipment easy to operate.
According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000㎡.
We can provide one-stop service from design to installation according to our customers' specific requirement.

Model	Out put	Occupied area	Equipment height	Manpower	Batching and packaging
Simple type	3-4t/h	20m2	3-4m	2-3 Person	Manual batching Automatic packaging
Semi-automatic type	6-8t/h	50-60m2	6-8m	3-4 Person	Manual batching Automatic packaging
Full automatic type	8-30t/h	60-100m2	8-13m	3-4 Person	Automatic batching Automatic packaging

Technical Parameters of MG Tile Adhesive Mortar Manufacturing Machine:

Tile Adhesive Mortar Manufacturing Machine
Screw Converyor	CE Mortar: 3kw
Twin Shaft Mixer (Equip Fly Cutting System for Fiber)	Mixer Mortar: 18.5kw Fly-cutter Mortar: 4kw Capacity: 2m³
Finish Product Hopper	Capacity; 1m³
Screw Conveyoe	CE Mortar: 3kw
Storage Silo	Capacity: 2m³
Packing Machine	Automatic Valve Type
Air Compressor	CE Mortar: 4kw
Control Cabinet	1 Set

Application of MG Tile Adhesive Mortar Manufacturing Machine:

The Tile Adhesive Mortar Manufacturing Machine can produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

Product Details

Name: Silo
Brand: MG
Original: Zhengzhou, China


Our bolted cement silo is also born for export market, not only has excellent quality,reliable sealing structure.but also easy for
transportation, easy for assembling, easy for disassembling, save shipping space, reduced transportation cost.

Name: Bucket Elevator
Brand: MG
Original: Zhengzhou, China


Function: mainly used for lifting the precisely-arranged material to the top of the bin to be mixed is characterized by good sealability, it has characters of low noise, minimal residual material, and easy cleaning.

Name: Weighting System
Brand: MG
Original: China


MG full automatic tile adhesive production line equip automatic weighing hopper, it can realize automatic feeding and automatic
dosing of the raw material, controlled by the PLC control cabinet.

Name: Twin Shaft Mixer
Brand: MG
Original: Zhengzhou, China


MG New type of double shaft paddle mixer introduce German technology, can mixer material with high efficiency and uniformally, it
 can mix one batch material within 3-5 minutes, it also equip fly cut system for fiber breaking.

Name: Finish Product Hopper
Brand: MG
Original: Zhengzhou, China


It used to storage finish product and fix under the mixer, and also it equip ribbons to realize second mixing, make sure the mixing of product more uniformally and product not block when packing

Name: Packing Machine
Brand: MG
Original: Zhengzhou, China


MG Valve port packing machine can pack dry powder material from 15-50kg per bag adjustable, It can pack one 25kg bag within 6
 seconds, the accuracy is very good, it can be 99.8%

Name: Dust Collector
Brand: MG
Original: China


MG Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize
 automatic dust remove.

Name: Air Compressor
Brand: MG
Original: China

Use special fabric filter dust,well dust collect.
Fans,Cloth cylinder and filter assembly as one,can shorten the wind mesh simplify workmanship process,reduce the investment of dust collector equipment.

Name: Control Cabinet
Brand: MG
Original: China


It use automatic PLC control system and touch screen system to realize automatic control

Workshop and Factory

Customers Visit Our Company

Certificates

Successful Project

Our Company

Zhengzhou MG Industrial Co., Ltd, the Leader of Full Automatic Dry Mortar Mixing Equipment!Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.

The main products of the company include dry mortar plant, thermal insulation mortar production line, sand dryer, power blending machine, impulse dust collector, automatic packing machine, and others.

According to the actual situation of each customer (investment costs, plant conditions, material characteristics, product formula, etc.), the company can tailor a reasonable practical and efficient equipment solution for customers.

MG products have been widely used in more than 1000 building materials enterprises in China, and exported to more than 70 countries, such as Canada, Russia, Korea, Malaysia, the United Arab Emirates, Argentina, Chile, Ecuador, Morocco, South Africa, Nigeria, etc.

MG will be willing to work with you to seek common development and create brilliance.
