High Efficiency Dry Mix Concrete Batching Plant Automatic Easy Operation Dry Mortar Premix Plant
Production Description of Dry Mortar Premix Plant:
MG newly designed Automatic Premixed Mortar Production Line with an annual output of 100,000-300,000 tons is mainly composed of two parts: sand drying system and ready-mixed mortar mixing system. A crushing sand making system can also be added as needed.
It mainly includes sand drying system, screening system, raw material storage system, automatic batching system, pneumatic system, dedustion system, finished product packaging system, bulk tanker packaging system, and automatic control system. It can equip the real time dynamic monitoring as required.
Working principle of Dry Mortar Premix Plant:
The production line abandons the traditional ground batching form and adopts the top layout mode of the tower layout, which greatly reduces the material mix delivery time, improves production efficiency, and reduces production costs.
According to the production requirements, the mixing system can use 4-10m3 large-capacity gravity-free double-shaft high-efficiency mixer with short mixing time and high mixing precision. The complete set of equipment is controlled by PLC automatic control system in real time, with high degree of automation management and friendly working environment.

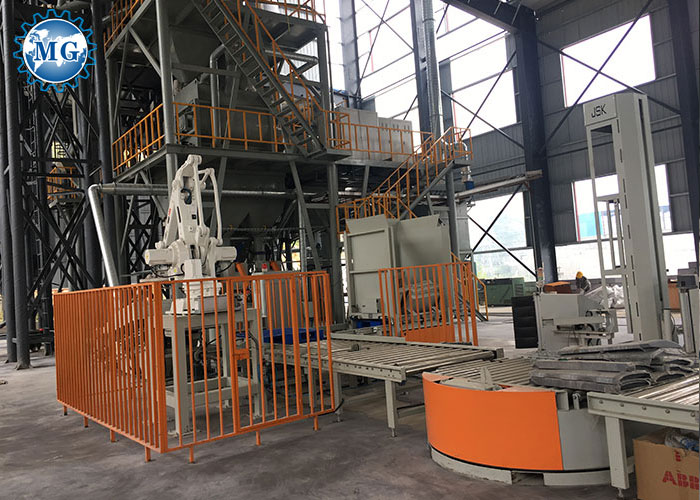

Automatic Delivery Palletizing System:
- Automatic Conveying and Stacking System can automatically realize the transportation and turning of packaging materials, ash removal, shaping, code spraying, heat sealing, stacking, winding and laminating, etc.
- Stacking robot is the product of organic combination of mechanical and programmable PLC, which provides higher production efficiency for modern automatic production and replaces repetitive and heavy manual labor.
Pneumatic Conveying:
- This system can adopts the dense phase intermittent batch transport or dilute phase continuous transport as the production requirement.
- It can be used to transport various powder materials such as emulsion powder powder, cellulose and multi-functional additives, fine particles and granule such as calcium powder, glass beads and fine sand.
- High conveying accuracy, small residue without mechanical wear, low energy consumption, without original properties of materials damaged, support long-distance continuous or intermittent transport (80-500 meters).
Application of MG Dry Mortar Premix Plant:
Dry Mortar Mixing Equipment can produce the following dry mortars:
| Bonding mortar | Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc |
| Decoration mortar | Decorative plaster, inner and outer wall putty, colorful decoration mortar etc |
| Protection mortar | Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc. |
Any further details please contact us freely!!!
