10-30T/H Dry Mortar Production Line Tile Adhesive Machine Building Material Making Machine
1. Description Of MG Automatic Dry Mortar Production Line:
MG Automatic Dry Mortar Production Line are widely used to produce all sorts of mortar, including putty mortar, rendering mortar, masonry mortar and waterproof mortar, etc. The full product line with advanced and high efficient dryer, mixing system, control system and dust collection system ensures quality mortar production.
2. Mechnical principle of MG Automatic Dry Mortar Production Line:
The double shaft paddle mixer works in the principle of mixing the materials in air countercurrent. The double shaft paddles are installed inside the drum and rotated in the opposite direction to each other. Each of the paddles is designed in rational separation distance and angle degree through the scientific calculation. When the materials are thrown to the air current inside drum by the force from the rotating paddles, the non-gravity force will be instantaneously generated and the materials will be thrown to the opposite area. The space between the twins shafts will be formed a fluidized non-gravity area and an air eddy current, in the bottom part, an air flowing layer also will be formed inside the drum. As a result, the materials are taken the three-dimensional compound motions, in order to be evenly, rapidly and circularly mixed in all aspects.
The machine can be widely applied in drying and mixing the chemical materials, metal materials, construction materials, coating materials, resins, agricultural materials, feeding stuffs, powder materials and etc.

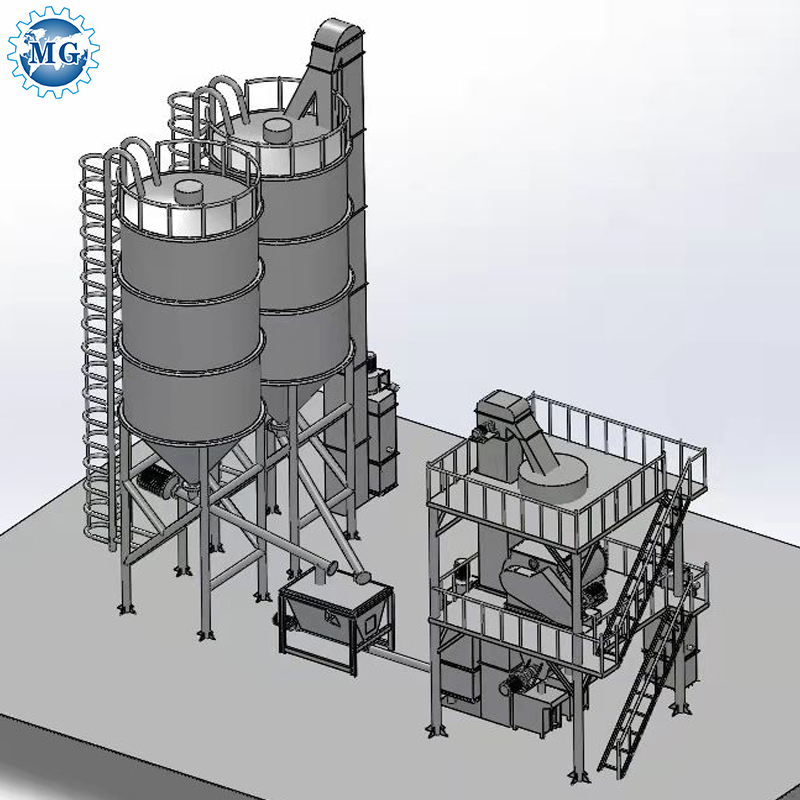

3. Flow chart and 3D drawing of the full automatic dry mortar porduction line:
4. Parameter of MG Full Automatic Dry Mortar Production Line :
| Model | 2000L mixing plant | 3000/4000L mixing plant | 6000L mixing plant | 10000L mixing plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop required | 500-600m2 | 600-800m2 | 800-1000m2 | 1000-1500m2 |
| Bag belt conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet wrapping machine | Provide | Provide | Provide | Provide |
| Sand dryer | Provide as requirement | Provide as requirement | Provide as requirement | Provide as requirement |
| HS code | 8474390000 | 8474390000 | 8474390000 | 8474390000 |
5. Stair Type Of The Automatic Dry Mortar Production Line:
It has annual production varying from 250k tons to 450k tons. The main raw material storage bin and the mixer of it are in parallel. The raw materials like sand enter the mixer through the secondary lifting, and the upper part of the mixer only retains the relatively small amount of raw materials and additive storage bins, thereby reducing the height of the storage bin and greatly reducing the project investment. In addition, dust pollution is reduced by adding a dust collector.
6. Advantage of MG Automatic Dry Mortar Production Line:
1. With high-degree intelligence
2. Easy to operate
3. Adopting computer-weighed scale and computer-packed machine to guarantee the accuracy.
4. With stable performance and high efficiency.
5. With higher efficiency and low energy consumption and low manual cost.
6. Suitable for middle and large scale enterprise
Secondly, it can produce plastering mortar such as internal and external rendering plaster, insulated dry mortar, putty and colored decorated dry mortar, etc. Thirdly, it can produce common masonry mortar, insulated masonry mortar, common terrace mortar, self-leveling mortar, water-proof mortar and other special mortar.
7. Application of MG Automatic Dry Mortar Production Line:
MG automatic dry mortar production line can be used to produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
8. Configuration Of MG Full Automatic Dry Mortar Production Line:
9. Why choose us:
We mainly engaged in providing turn-key service to numerous customers with engergy-saving and efficient practical solutions. Main advantage of dry powder mixing equipment from Zhengzhou MG (compared with other suppliers):
1. Over 20 years experience in this dry mortar production line. since 2000, Zhengzhou MG dedicated in the research and development of dry powder mixing equipment for decades, we are in a leading position in this trade;
2. Qe provide to customers with combat experience of decade years of construction management and multiple efficient project solution.
3. The special additives from Zhengzhou MG guranteed the quality of dry mortar from our clients.
We promise to all customers that: upon you choose our services and products, we will provide the first-class product quality, latest technology in mortar formula, and special additives; we ensure the good quality of dry mortar produced by our equipment.
If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
