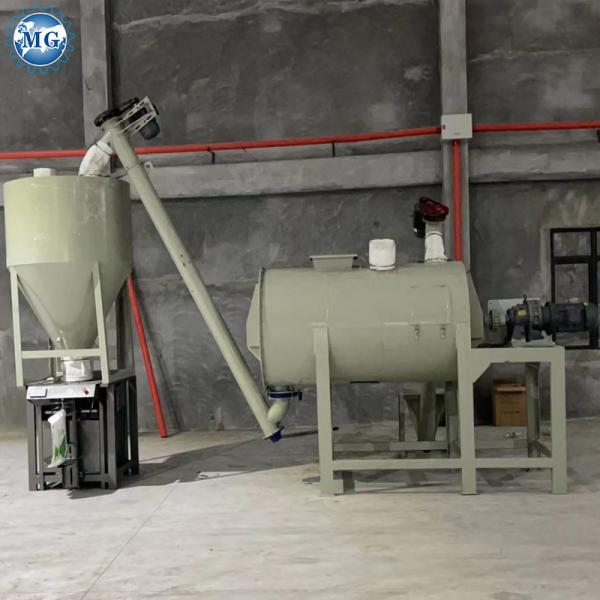

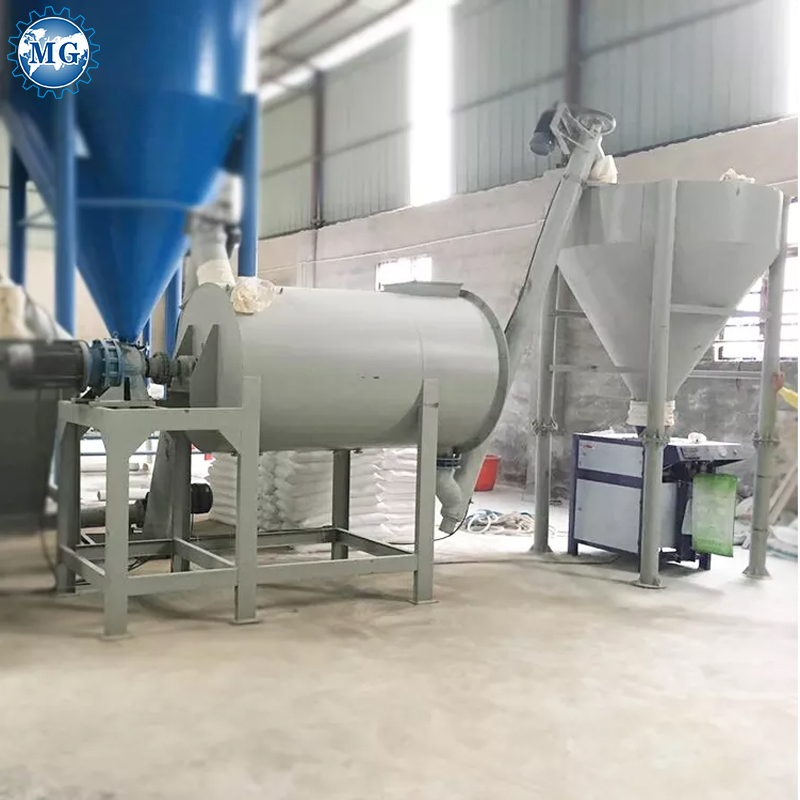

Simple Dry Mortar Production Line Dry Mortar Mix Plant
Description of MG Simple Dry Mortar Production Line
MG series simple dry mortar Production line is designed based on the traditional ribbon mixer machine, and add a material transportation system, a storage silo and an automatic packaging machine,which forms the whole simple dry mortar mixing plant,it can work continuously from feeding,mixing,transporting to packing,it works much more efficient than the single mixer machine.
Advantages of MG Simple Dry Mortar Production Line
This simple dry mortar Production line only occupies area: <20 m2,height:<3.5 m,workers required:2-3 persons,capacity:3-5 t/h,size:6000*3000*3200 mm,power:20 kw,it's simple but efficient and practical dry mortar plant,and it's easy operation and maintenance,you can devote low investment,and produce all kinds of dry mortar with this simple production line,it's the best choice for those starter with limited investment budget.
Technical parameter of MG Simple dry mortar production line with Ribbon mixer:
| Model | Capacity | Occupied area | Equipment height | Manpower | Batching and packaging |
| Simple dry mortar production line | 3-4 T/H | 20㎡ | 3-4m | 2-3 Person | Manual batching
Automatic packaging |
| Improved dry mortar plant | 4-5 T/H | 20㎡ | 3-4m | 2-3 Person | Manual batching
Automatic packaging |
| Semi automatic dry mortar plant | 6-8t/h | 50-60㎡ | 6-8m | 3-4 Person | Manual batching
Automatic packaging |
| Automatic dry mortar plant | 8-30t/h | 60-100㎡ | 8-13m | 3-4 Person | Automatic batching
Automatic packaging |
Application of MG Simple Dry Mortar Production Line:
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar,anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
Configuration of MG Dry Mortar Production Line With Ribbon Mixer:
Foreign customers Visit Zhengzhou MG Factory for the Dry Mortar Machines With Ribbon Mixer:
MG Dry Mortar Machines Loading To Foreign Customers:
The Factory and the Workshop of Zhengzhou MG Factory Dry Mortar Machines:
Certificate of Zhengzhou MG Factory about the dry mortar production line:
If you want to know more of our dry mortar plant, please send us inquiry or leave your contact number for us.
