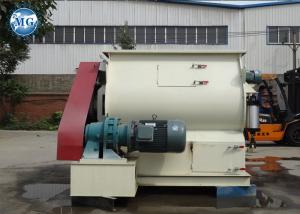

Professional Dry Mortar Mixer Machine Undetachable Blade Electric Mortar Mixer

  • 1
  • 2

Brand Name : MG

Model Number : MGDM-1.2

Certification : CE, BV, ISO9001:2008

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 100 Sets per month

Delivery Time : 5-7 working days

Packaging Details : Wooden box packaging

Driven : Electric driven

Mixer type : Double shaft paddle mixer

Application : Dry mortar powder mixing

Advantage : Professional manufacturer and foreign trading company for 18 years

Warranty : 1 years

Color : Blue, gray, red, yellow or customized

Paddle blade type : Undetachable

Predominance : Energy-saving high to 66% than ribbon mixer

Power(KW) : 18.5kw +

Weight : 6-7t

Production Capacity : 4-30t/h

Installation and training : Provide

Price : negotiable

Contact Now

Biaxial Twin Shaft Agravic Putty Powder Paddle Dry Mix Mortar Mixer

Description of Double Shaft Paddle Mixer

Double Shaft Paddle Mixer adopts the paddle structure. There materials can lose weight instantly in short time at the critical parabolic rotate speed so that the best mixing effect can be achieved, and also the violent turnover speed shortens them mixing time to large the extent. This machine is widely applied in the equipment of unitized mass production lines.

Biaxial twin shaft agravic putty powder paddle dry mix mortar mixer

Double Shaft Paddle Mixer is also known as the two-axis pulp-free mixer, which is mainly aimed at the mixing of the fiber in the material.There are two main types of the two-axis slurry non-gravity mixer: one is the ordinary non-gravity mixer, and the other is the flying knife type weightless mixer.Is widely used in dry mortar industry, chemical industry, pesticide, detergent, pigment, food, monosodium glutamate, milk powder, salt, feed, chemical, ceramics, plastics, rubber additives such as dry powder and mix.

Working principle:

It is designed based on the traditional mixer, is added a material conveying system, a storage silo and an automatic packaging machine.It adopts the Twin-shaft Agravic mixer as its main mixing system. The well-mixed materials will go into the storage silo via material conveying pipe, and the mixer may be feed consecutively and work continuously in flow line production, but the equipment is not over 4 meters high, thus solving the problem of heightening the workshop. Moreover, it may realize automatic metering and packaging, hence, it may not merely save the time and energies but also may be more accurate. It required little investment, but it may load, weight and package the materials automatically; no wondering, it is a simple but practical production line.

Unique design

1.Instead of traditional chain transmission device ,extendusing life more than 2-3 years.

Professional Dry Mortar Mixer Machine Undetachable Blade Electric Mortar Mixer
2.Special sealed design: dust will never enter the bearing.

Professional Dry Mortar Mixer Machine Undetachable Blade Electric Mortar Mixer

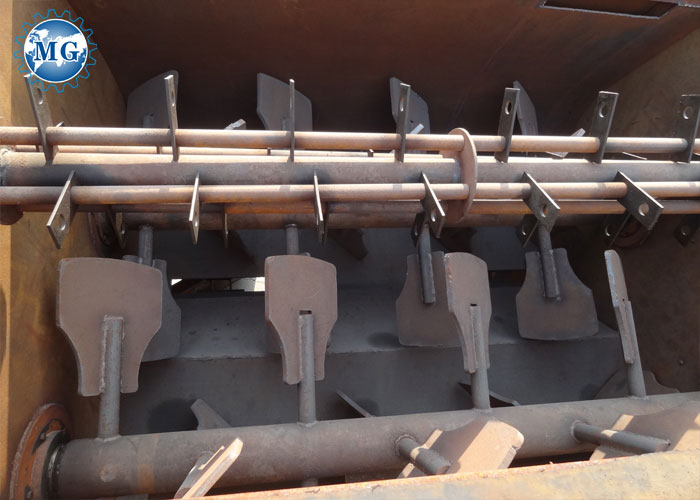

3.Material is wear resistant manganese steel ,more strenght and it adopts the adjustable detachable design.

Professional Dry Mortar Mixer Machine Undetachable Blade Electric Mortar Mixer

Parameters of the Twin Shaft Agravic Mixer

Model MG 2000 MG3000 MG4000 MG6000
Discharge capacity (t/batch) 1-1.5t/batch 2-2.5t/batch 3-3.5t/batch 4-4.54t/batch
Mixer cylinder volume(m3) 2 3 4 6
Mixing time 3-5min 3-5min 3-5min 3-5min
Motor power 18.5kw 22kw 37kw 37kw
Shaft rotate speed 43r/min 43r/min 43r/min 43r/min
Coefficient of variation(CV) <=5% <=5% <=5% <=5%
Paddle blade quantity 2*14=28pcs 2*14=28pcs 2*14=28pcs 2*14=28pcs
Overall dis(mm) 2600*1600*1650 3000*1600*1650 3000**2200*2000 3000*2450*2200

We are professional manufacturer of dry mortar equipment for 18 years, we always provide customer with turn-key services, including high quality machine, special additives, latest Germany or Japan formulation technology, installation and commissioning on site, consulting and updating equipment in machine lifetime.

You'll get professional and technical supporting from us when you choose us.

Any problem please feel free to contact Zoey Lee,

E-mail: amy@mgcn.com.cn Tel/ WhatsApp/Wechat: +86 18537125712
